Description
Key Features

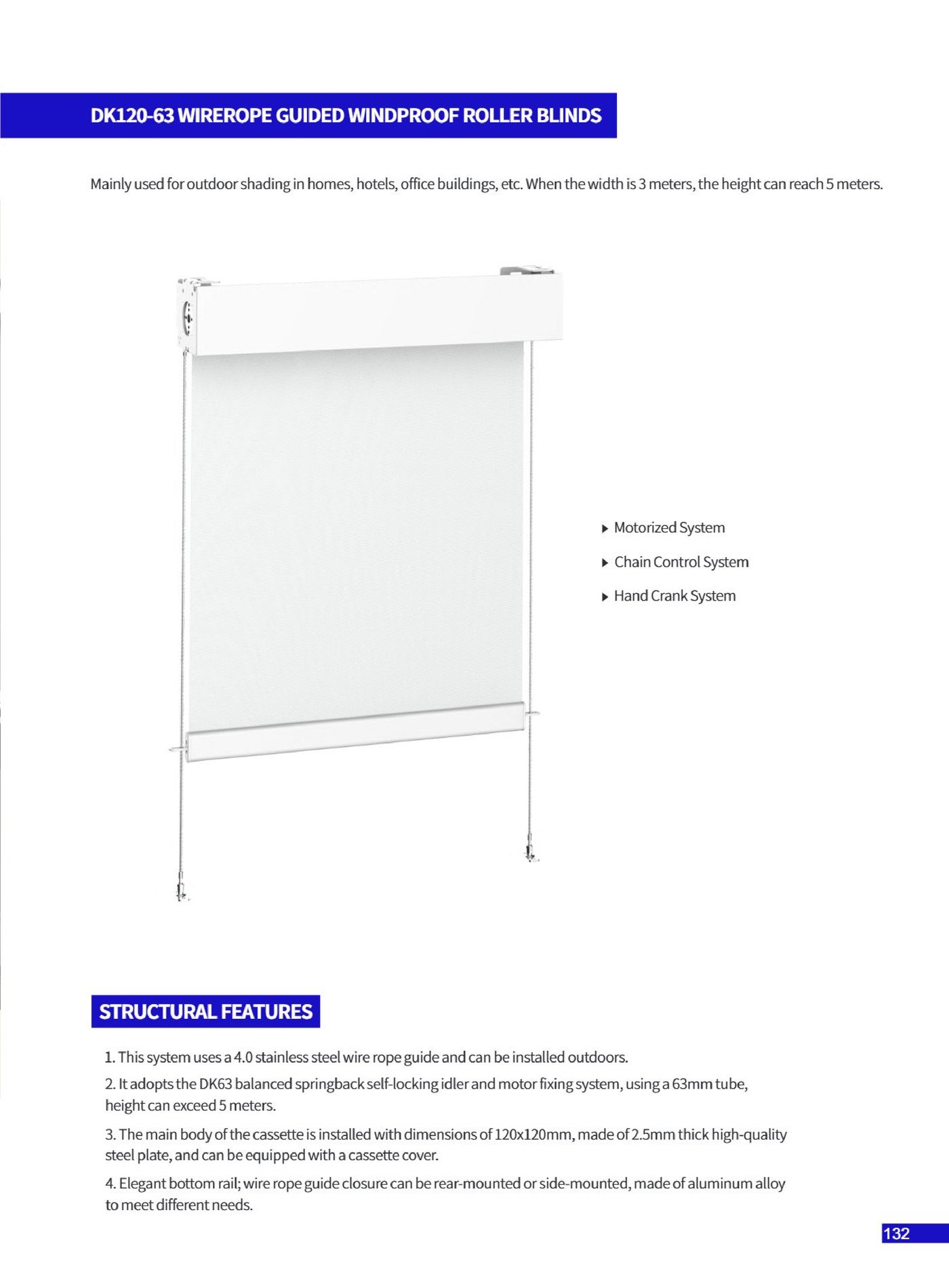

- Uses a 4.0 mm stainless steel wire rope guide and can be installed outdoors.

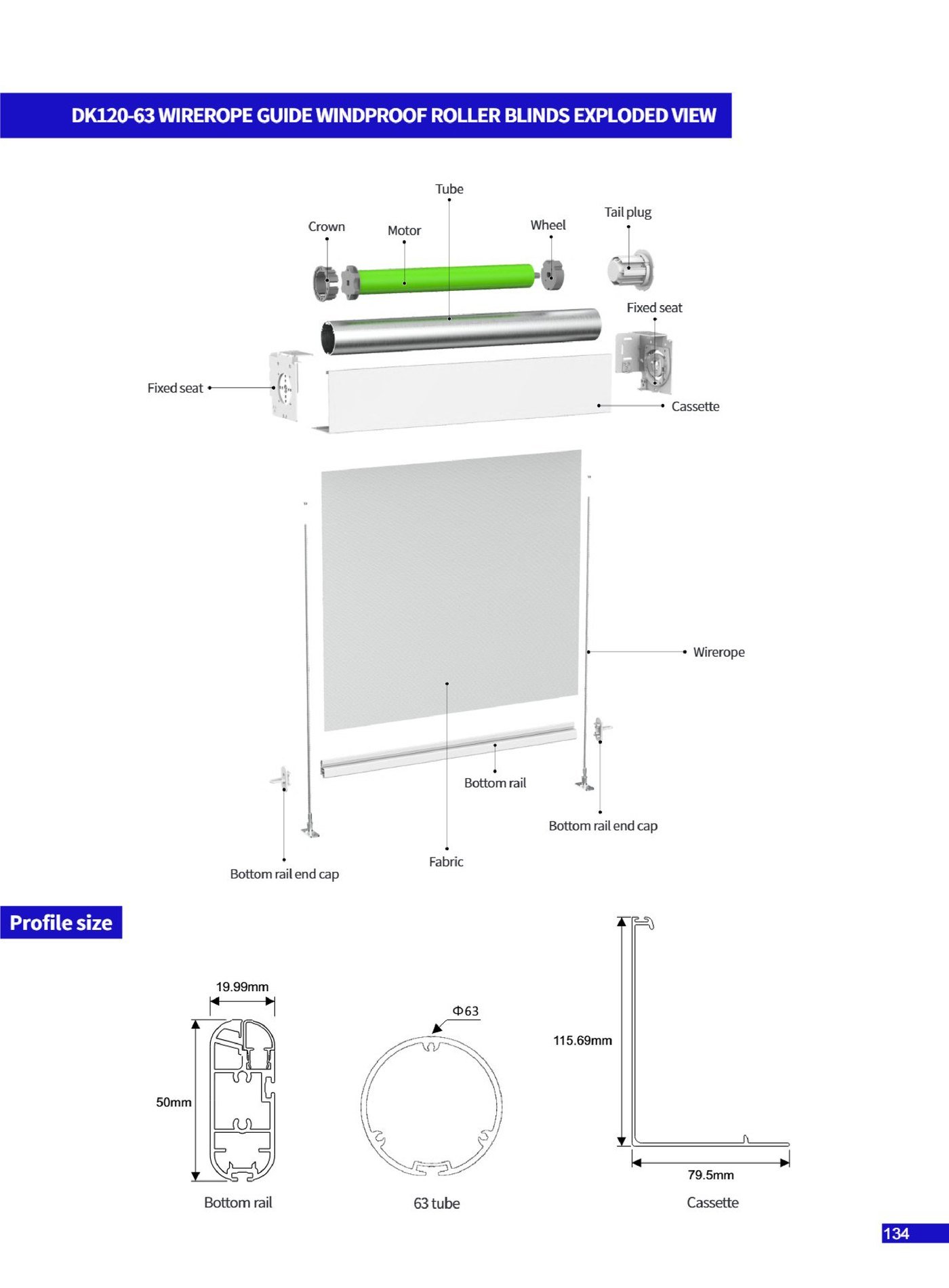

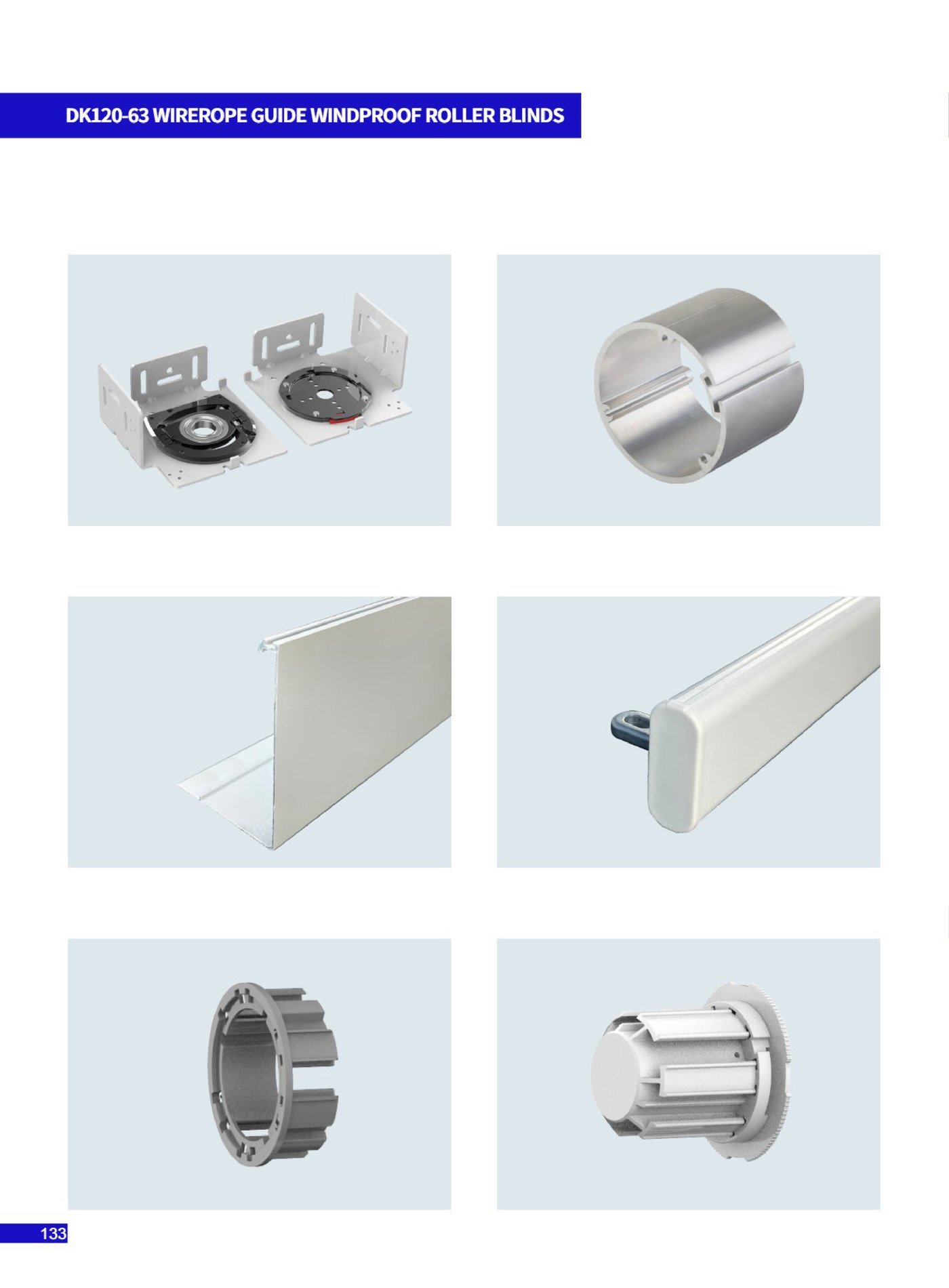

- Adopts the DK63 balanced springback self-locking idler and motor fixing system with a 63 mm tube.
- The main body of the cassette is 120 x 120 mm, made of 2.5 mm thick high-quality steel plate, and can be equipped with a cassette cover.
- Mainly used for outdoor shading in homes, hotels and office buildings.
- When the width is 3 m, the height can reach 5 m.
- Wire rope guidance keeps the fabric stable in wind without bulky side rails.
Specifications
| Cassette | 120 x 120 mm (2.5 mm steel plate) |
| Tube | 63 mm |
| Guide | 4.0 mm stainless steel wire rope |
| Max height | 5 m (at 3 m width) |
| Application | Outdoor shading, homes, hotels, offices |
Applications
Extra-high Windproof Roller Blinds from SANXIN INTELLIGENT. Super wind-resistant roller shutter system suitable for hotels, homes, offices, sunrooms, balconies and engineering projects.
