Description
Key Features

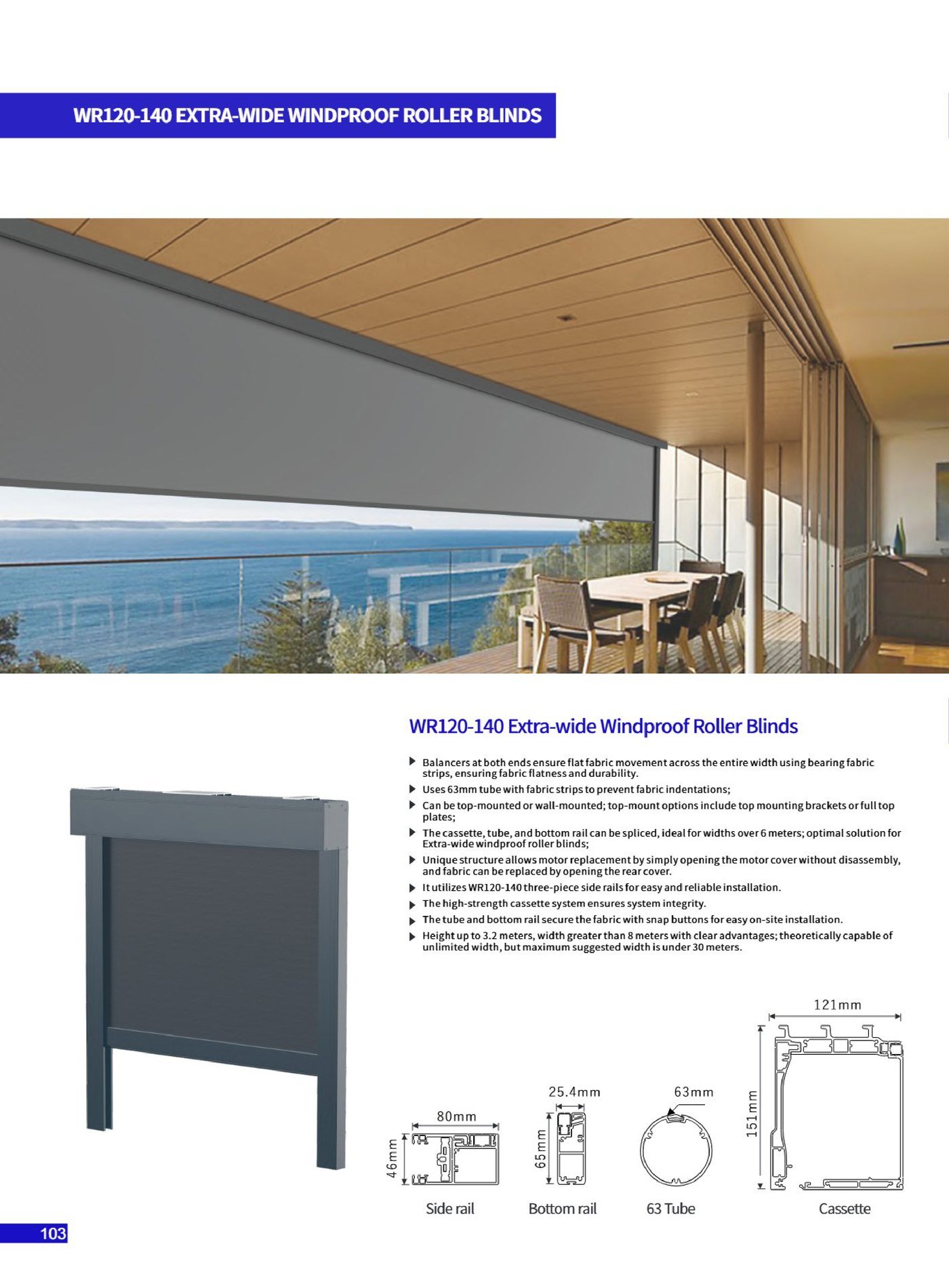

- Dedicated extra-wide windproof roller blinds system for widths over 10 m.
- Balancers at both ends ensure flat fabric movement across the entire width using bearing fabric strips, ensuring fabric flatness and durability.
- Fabric remains flat, tube never bends.

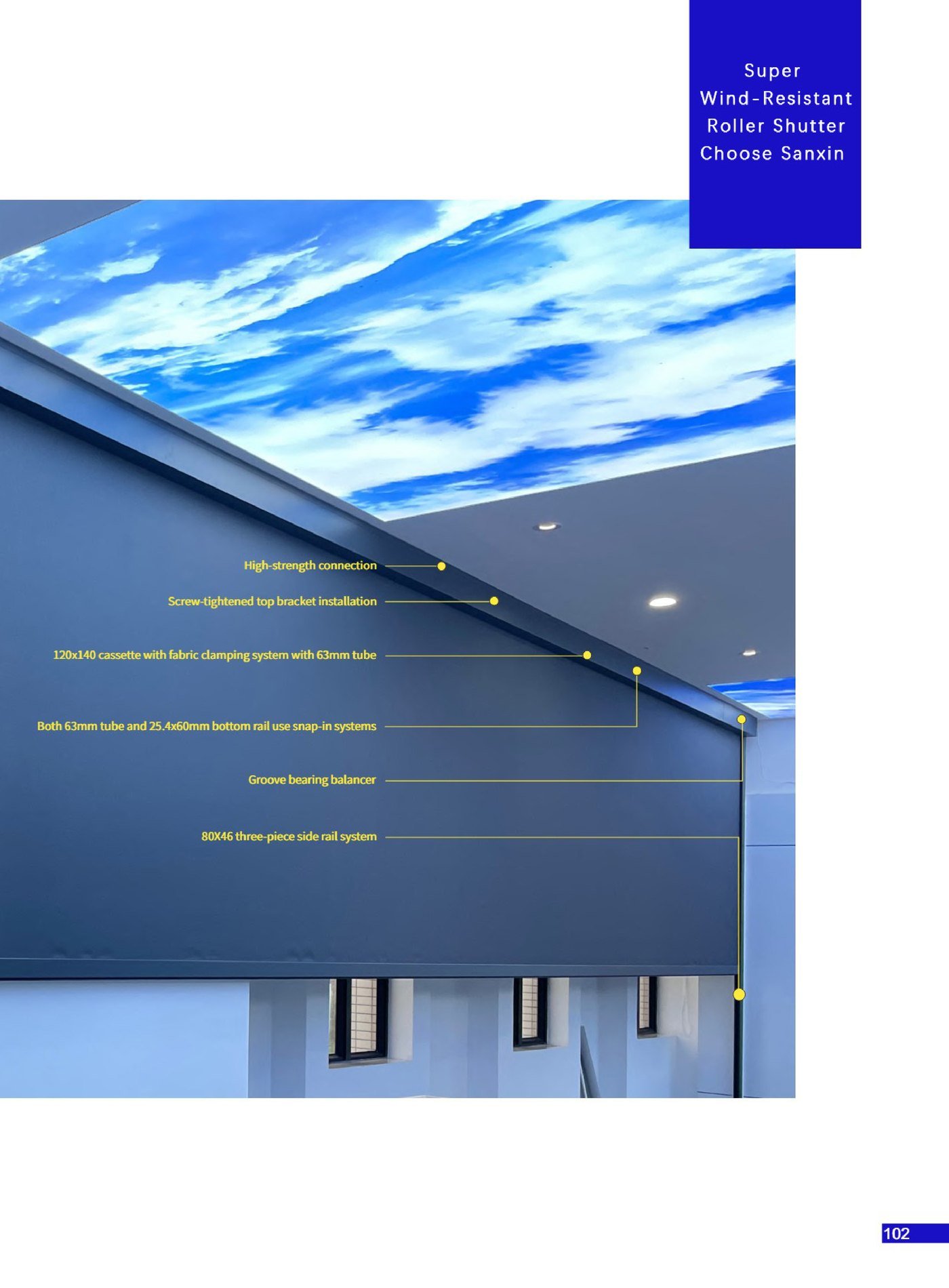

- Strong side rail with excellent wind resistance; 80 x 46 three-piece side rail system.
- 120 x 140 mm cassette with fabric clamping system and 63 mm tube.
- Both the 63 mm tube and the 25.4 x 60 mm bottom rail use snap-in systems.
- Screw-tightened top bracket installation; motor can be repaired without disassembling the entire blind.
- Easy on-site installation with an elegant and refined appearance.

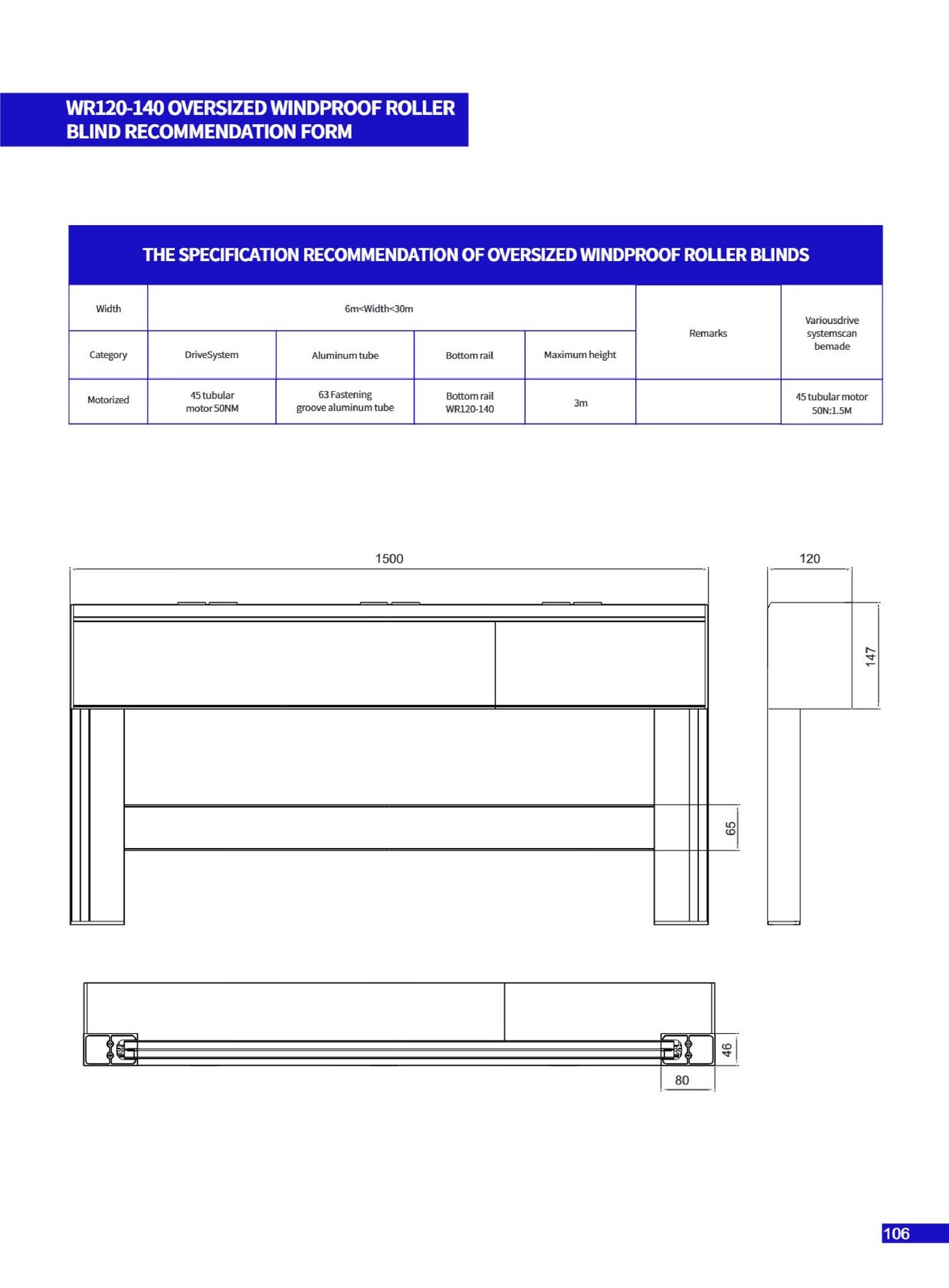

Specifications
| Cassette | 120 x 140 mm |
| Side rail | 80 x 46 mm three-piece |
| Tube | 63 mm |
| Bottom rail | 25.4 x 60 mm snap-in |
| Width range | Over 10 m |
| Installation | Screw-tightened top bracket |
Applications
Extra-wide Windproof Roller Blinds from SANXIN INTELLIGENT. Super wind-resistant roller shutter system suitable for hotels, homes, offices, sunrooms, balconies and engineering projects.
